Homy is here

During the last couple of years, I was giving lots of thoughts to a fully automated house. Usually I was amazed by different ideas, usage of diverse technologies and concepts, but never tried to really apply some of these in my apartment. This changed couple of months ago, and after the first home automation project, I already have couple of more ideas.

It all started when I found this device in a shop nearby:

I spent couple of days mounting these guys all around my apartment. At the end, I presented three remote controls to my wife: one for living room, one for administration room and one for our bedroom. She was skeptic at first, but later realized the benefits.

After couple of weeks I couldn’t resist from opening one of those remotes 🙂 What I found inside was HS1527 in the heart of the device. Next instinctive step was googgling for HS1527 remote control which led me to one really interesting discussion on JeeLabs webpage. There I discovered the magic device: JeeNode USB (v3):

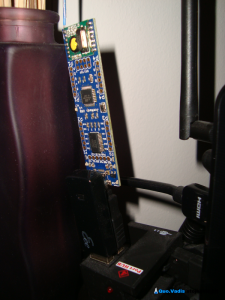

Couple of days after ordering, I received my own JeeNode (+candy :D). Since JeeNode uses FTDI chip I downloaded and installed drivers from FTDI site. Using RealTerm software I quickly connected to the gadget and start playing with pre-installed program. That was fun, but not exactly what I had on mind. I downloaded IDE from Arduino web site, and after couple of hours of the programing, using the code I found in JeeLabs discussion, the first light was remotely turned on and off 🙂

// Homy Control

#include <ctype.h>
#include <Ports.h>
#include <RF12.h>

#define Tck 350

long devIds[16] = {28202, 28202, 28202, 28202, 912938, 912938, 912938, 912938, 416811, 416811, 416811, 416811};
int chanIds[16] = {    0,     4,     2,     1,      0,      4,      2,      1,      0,      4,      2,      1};

static void sendHigh()
{
  rf12_onOff(1);
  delayMicroseconds(Tck+150);
  rf12_onOff(0);
  delayMicroseconds(3*Tck-200);
}

static void sendLow()
{
  rf12_onOff(1);
  delayMicroseconds(3*Tck+150);
  rf12_onOff(0);
  delayMicroseconds(Tck-200);
}

static void sendBit(boolean data)
{
  if (data)
    sendHigh();
  else
    sendLow();
}

static void sendPreamble()
{
  rf12_onOff(1);
  delayMicroseconds(Tck+150);
  rf12_onOff(0);
  delayMicroseconds(31*Tck-200);
}

static void sendPacket(long C, int D)
{
    sendPreamble();
    for(int b = 19; b > -1; b--) sendBit((C >> b) & 0b1);
    for(int b = 3; b > -1; b--) sendBit((D >> b) & 0b1);
}

static void turn(long deviceId, int channel, boolean on)
{
  int count = 5;
  while (count--)
    sendPacket(deviceId, (on ? 0b0000 : 0b1000) | (channel & 0b0111));
}

static void train(long deviceId, int channel)
{
  int count = 100;
  while (count--)
      sendPacket(deviceId, 0b1000 | (channel & 0b0111));
}

static void led(byte on) {
    pinMode(9, OUTPUT);
    digitalWrite(9, !on);
}

char getc()
{
  while (Serial.available()==0) {}
  return Serial.read();
}

int device(char c)
{
  c = toupper(c);
  if (c>='0' && c<='9')
    return (int)(c-48);
  if (c>='A' && c<='F')
    return (int)(c-55);

  return -1;
}

void setup() {
  Serial.begin(57600);
  rf12_initialize(0, RF12_433MHZ);
  Serial.println("Homy Control");
  Serial.println();
  Serial.println("Syntax :");
  Serial.println(" [0|1|X|Z]<device>");
  Serial.println();
  Serial.println(" where :");
  Serial.println("    0 - turn off");
  Serial.println("    1 - turn on");
  Serial.println("    X - turn all off for device group");
  Serial.println("    Z - hook device");
  Serial.println("    <device> - device code (hex digit)");
  Serial.println();
}

void loop() {

  Serial.print(">");

  char fc = getc();
  int dev;

  switch(toupper(fc))
  {
    case 'Z':
        dev = device(getc());
        led(1);
        train(devIds[dev],chanIds[dev]);
        Serial.print("Train ");Serial.print(devIds[dev]);Serial.print(" ");Serial.println(chanIds[dev]);
        led(0);
      break;

    case '1':
        dev = device(getc());
        turn(devIds[dev],chanIds[dev],1);
        Serial.print("On ");Serial.print(devIds[dev]);Serial.print(" ");Serial.println(chanIds[dev]);
      break;

    case '0':
        dev = device(getc());
        turn(devIds[dev],chanIds[dev],0);
        Serial.print("Off ");Serial.print(devIds[dev]);Serial.print(" ");Serial.println(chanIds[dev]);
      break;

    case 'X':
        dev = device(getc());
        turn(devIds[dev],7,1);
        Serial.print("Off ALL ");Serial.println(devIds[dev]);
      break;

    default:
        led(1);
        Serial.println("*");
        led(0);
      break;
  }
}

Since the antenna shipped with JeeNode was for 868 MHz RF signals, the range was pretty poor. I replaced that antenna with 165mm one, that is optimal length of whip antenna for frequencies of 433 MHz. The range boosted and now all the lights in my apartment were covered. I showed my new baby to my wife, and explained her that if she types 11 in console, light will turn on. She gave me strange look. We named this project Homy.

Next step was software part for my home computer. After whole weekend of programming, the result was Windows application that talks to JeeNode using COM port communication and exposes web service for further integration.

Also, in order to access service from my PC, I developed a client that communicates with Homy Control Service using web services:

By then my wife was pretty angry since I spent whole weekend programming, so I had to do something about it. She recently became an owner of iPhone, so logical step was to bring the fun there. Using jQTouch, a jQuery plugin for developing for iPhone, a simple web application was born:

After this, we started playing like two kids, each of us with its own controller. I think neighbors must have been shocked, since the lights were going on and off the whole night.

Another thing that took me additional night of thinking and programming was how to determine the IDs of the existing remote controllers, so we can use the in parallel.

At the end, here is short video demonstration of Homy:
